HLMP-1540, HLMP-K640 T-1 3/4 (5 mm), T-1 (3 mm), Ultra-Bright LED Lamps Description These non-diffused lamps out-perform conventional LED lamps. By using new higher intensity material, superior product performance is achived. Features The HLMP-3750/3390/1340 Series Lamps are Gallium Arsenide Phosphide on Gallium Phosphide red light emitting diodes. The HLMP-3850/3490/1440 Series are Gallium Arsenide Phosphide on Gallium Phosphide yellow light emitting diodes. The HLMP-3950/3590/3960/1540/ K640 Series Lamps are Gallium Phosphide green light emitting diodes. Improved brightness Improved color performance Available in popular T-1 and T-1 3/4 packages New sturdy leads IC compatible/low current capability Reliable and rugged Choice of three bright colors - High Efficiency Red - High Brightness Yellow - High Performance Green Applications Broadcom Lighted switches Backlighting front panels Light pipe sources Keyboard indicators AV02-1556EN July 19, 2017 HLMP-3707, HLMP-3907, HLMP-3750, HLMP-3850, HLMP-

3] Omitted From List; Old Part Number To Be Retained [4] List Sorted By Old Part Numbers [5] This Is The Final Revision For This Part Number Change Page 17 of 45 HP LED PART-NUMBER CHANGE CROSS-REFERENCE LIST Old Part Number[4] HLMP-1523#S02 HLMP-1523#S22 HLMP-1540 HLMP-1540#001 HLMP-1540#002 HLMP-1540#010 HLMP-1540#101 HLMP-1540#2DC HLMP-1540#ID2 HLMP-1540#S02 HLMP-1550 HLMP-1550#001 HLMP-1550#002 HLMP-1550#S02 HLMP-1585 HLMP-1585#001 HLMP-1585#002 HLMP-1585#010 HLMP-1585#101 HLMP-1585#2BJ HLMP-1585#2DJ HLMP-1585#2EE HLMP-1585#ID1 HLMP-1600 HLMP-1600#001 HLMP-1600#002 HLMP-1600#010 HLMP-1600#101 HLMP-1601 HLMP-1601#001 HLMP-1601#002 HLMP-1601#010 HLMP-1601#101 HLMP-1601#S02 HLMP-1620 HLMP-1620#001 HLMP-1620#002 HLMP-1620#010 HLMP-1620#101 HLMP-1620#S20 HLMP-1620#S22 HLMP-1621 HLMP-1621#001 HLMP-1621#002 HLMP-1621#010 HLMP-1621#101 HLMP-1640 HLMP-1640#001 Revision 2.0[5] (11 May 1999) New Part Number HLMP-1

HLMP-1540, MV5460 PALE TINT HIGH EFFICIENCY RED MV5762X TINTED, HLMP-1340, MV5760 PALE TINT 3.15+0.2 | 0+0.5 00.5 NOTES: . ALL DIMENSIONS ARE IN MM. Zz 2. LEAD SPACING IS MEASURED = WHERE THE LEADS EMERGE oa FROM THE PACKAGE. . PROTRUDED RESIN UNDER t THE FLANGE IS 1.5 mm (0.059) MAX. wo ~ 2 (ANODE) SOURCE These solid state indicators offer a variety of color selection. The High Efficiency Red and Yellow devices are made with gallium arsenide phosphide on gallium phosphide. All are encapsulated in epoxy packages and have clear lenses. Their small size, wide viewing angle, and small square leads contribute to their versatility as all-purpose indicators. All types are tinted to aid identification. Standard and Ultrabright devices Clear tinted lenses 100 mil lead spacing High efficiency GaP Versatile mounting on PC board or panel Long lifesolid state reliability Low power requirements Compact, rugged, lightweight T-1 diameter Replacement for the HLMP-1X20/1 Series Excellent for switch backlighting L

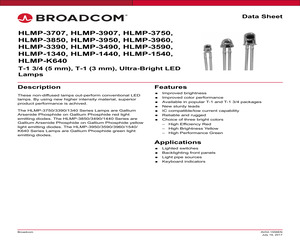

HLMP-1540, HLMP-K640 T-13/4 (5 mm), T-1 (3 mm), UltraBright LED Lamps Data Sheet Description Features These non-diffused lamps out-perform conventional LED lamps. By utilizing new higher intensity material, we achieve superior product performance. * Improved brightness The HLMP3750/3390/1340 Series Lamps are Gallium Arsenide Phosphide on Gallium Phosphide red light emitting diodes. The HLMP3850/3490/1440 Series are Gallium Arsenide Phosphide on Gallium Phosphide yellow light emitting diodes. The HLMP3950/3590/3960/1540/ K640 Series Lamps are Gallium Phosphide green light emitting diodes. * Improved color performance * Available in popular T-1 and T-13/4 packages * New sturdy leads * IC compatible/low current capability * Reliable and rugged * Choice of 3 bright colors - High Efficiency Red - High Brightness Yellow - High Performance Green Applications * Lighted switches * Backlighting front panels * Light pipe sources * Keyboard indicators Selection Guide Luminous Intensity Iv (mcd) @ 20mA Packag

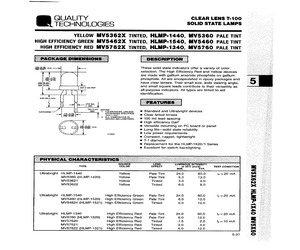

HLMP-1540, MV5460 PALE TINT HIGH EFFICIENCY RED MV5762X TINTED, HLMP-1340, MV5760 PALE TINT These solid state indicators offer a variety of color selection. The High Efficiency Red and Yellow devices are made with gallium arsenide phosphide on gallium ah phosphide. All are encapsulated in epoxy packages and S- have clear lenses. Their small size, wide viewing angle, 2G and small square leads contribute to their versatility as Vv all-purpose indicators. All types are tinted to aid TT identification. 2 NOTES: Ss 1. ALL DIMENSIONS ARE IN MM. 1 i i z = >. LEAD SPACING IS MEASURED a Standard and Ultrabright devices = WHERE THE LEADS EMERGE = Clear tinted lenses 2 FROM THE PACKAGE. = 100 mil lead spacing = 3. PROTRUDED RESIN UNDER : . t THE FLANGE IS 1.5mm (.059") ' High efficiency GaP i" MAX. = Versatile mounting on PC board or panel Long lifesolid state reliability 54 @ Low power requirements m= Compact, rugged, lightweight = T-1 diameter = Replacement for the HLMP-1X20/1 Series = Excellent for switc

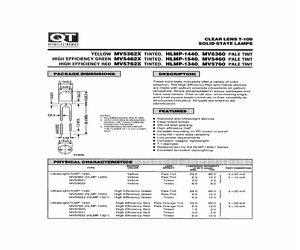

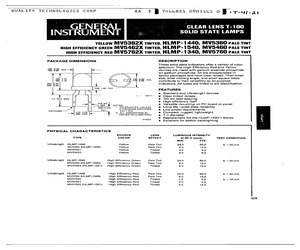

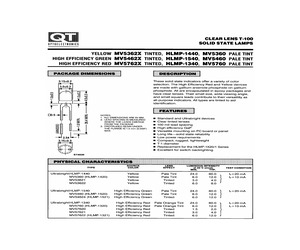

HLMP-1540, MV5460 pate Tint HIGH EFFICIENCY RED MV5762X tinteo, HLMP-1340, MV5760 Pate Tint PACKAGE DIMENSIONS DESCRIPTION These solid state indicators offer a variety of color 125 3.18 selection. The High Efficiency Red and Yellow 05 267 DIA [~< devices are made with gallium arsenide phosphide 7 on gallium phosphide. All are encapsulated in { i epoxy packages and have clear lenses. Their small 4198. 470 195 343 size, wide viewing angle, and small square leads 765 479 UCT) (C1) 1-367 * contribute to their versatility as all-purpose 250 6 35, + indicators. All types are tinted to aid identification. -200 508 040 102 REF FEATURES Fe Standard and Ultrabright devices f { I ~ > rowers -@ Clear tinted lenses 10 254 MIN s 100 mil lead spacing High efficlency GaP (] ogg} NOTES Versatile mounting on PC board or panel rT]: 350 (127) 1 TOLERANCES UNLESS s Long lifesolid state reliability 4 : REF OTHERWISE SPECIFIED = w_~Low power requirements CATHODE K____ Aer XXX = 010 . 410 279 2 ALL DIMENSIONS IN = Compa

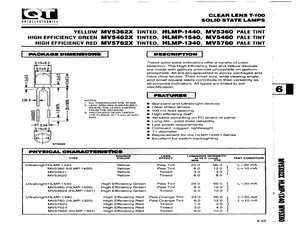

HLMP-1540, MV5460 PALE TINT HIGH EFFICIENCY RED MV5762X TINTED, HLMP-1340, MV5760 PALE TINT DESCRIPTION These solid state indicators offer a variety of color selection. The High Efficiency Red and Yellow devices are made with gallium arsenide phosphide on gallium } phosphide. All are encapsulated in epoxy packages and a have clear lenses. Their small size, wide viewing angle, and small square teads contribute to their versatility as all-purpose indicators. All types are tinted to aid wo oe 3 t identification. NOTES: 1. ALL DIMENSIONS ARE IN MM. i . LEAD SPACING IS MEasuRceD Os Standard and Ultrabright devices WHERE THE LEADS EMERGE = Clear tinted lenses FROM THE PACKAGE, 100 mil lead spacing = = 2 PROTRUDED RESIN UNDER . _ t THE FLANGE IS 1.5 mm (0.059") High efficiency GaP Versatile mounting on PC board or panel Z MAX, = = Long lifesolid state reliability | 254 Low power requirements Compact, rugged, lightweight T-1 diameter Replacement for the HLMP-1X20/1 Series Excellent for switch backlightin

ct Us | Home Quick Search About Agilent | Online Stores | Products & Services | Industries | International Home > Products & Services > Semiconductor Products Home > LED Design Center > Product Information and Literature Product Information and Literature HLMP-1540-H00VR Events T-1 (3mm) Ultra-Bright LED Lamp Guided Selection Library News Releases Order Information Global Account Sites Partner Portal Product Index LIFE CYCLE STATUS AC - Active This product is Market released and in full production FEATURES Hot Links Product Center Application Notes Datasheets Improved Brightness Improved Color Performance High Performance Green in Popular T-1 Package New Sturdy Leads IC Compatible/Low Current Capability Reliable and Rugged Available in Ammo Pack FAQs Product Notifications DESCRIPTION This clear, non-diffused lamp out-perform conventional LED lamps. By utilizing new higher intensity material, we achieve superior product performance. This HLMP-1540 is Gallium Arsenide Phosphide on Gall

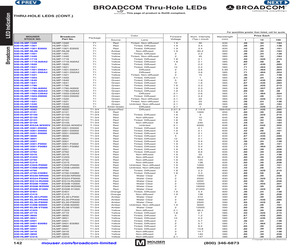

A00A2 630-HLMP-1620 630-HLMP-1621 630-HLMP-1401-D00A1 630-HLMP-1401-D00A2 630-HLMP-1421 630-HLMP-1503 630-HLMP-1640 630-HLMP-1641 630-HLMP-1790 630-HLMP-1790-A0002 630-HLMP-1790-A00A2 630-HLMP-1503-C00A2 630-HLMP-1503-D0000 630-HLMP-1520 630-HLMP-1521 630-HLMP-1540 630-HLMP-K600 630-HLMP-4000 630-HLMP-4101 630-HLMP-D150 630-HLMP-D155 630-HLMP-D101 630-HLMP-D105 630-HLMP-EG3A-WX0DV 630-HLMP-3301-D0000 630-HLMP-3301-D0002 630-HLMP-3351-D0000 630-HLMP-3600 630-HLMP-3601 630-HLMP-3301 630-HLMP-3301-F0002 630-HLMP-3301-F00B2 630-HLMP-3351 630-HLMP-3762 630-HLMP-3316 630-HLMP-C223 630-HLMP-3750 630-HLMP-C215 630-HLMP-C025-P0000 630-HLMP-C008-U0000 630-HLMP-4700 630-HLMP-4700-C00B2 630-HLMP-EG30-NR000 630-HLMP-EG24-PS000 630-HLMP-EG15-RU000 630-HLMP-EG08-Y2000 630-HLMP-EG08-WZ000 630-HLMP-EG08-X1000 630-HLMP-D401 630-HLMP-C415 630-HLMP-EL30-LP000 630-HLMP-EL30-PR400 630-HLMP-EL30-PS000 630-HLMP-C208-S0000 630-HLMP-EL08-VY000 630-HLMP-C323 630-HLMP-4719 630-HLMP-3650 630-HLMP-3651 630-HLMP-3401 630-HLMP-

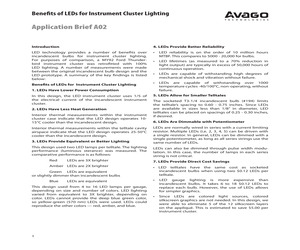

e back of the applique. This "half-tone" pattern is designed to reduce the luminous sterance in the brighter areas of the graphics. Because several LEDs are used to backlight Table 1. Gauge Lighting Color Incandescent LED Green Color 3.18 cd/m2 LPE Green (HLMP-1540) 8.91 cd/m2 Red Color (Max. RPM, on Tach) 4.82 cd/m2 HER (HLMP-1340) 6.88 cd/m2 Amber Color (KPH, on Speedo) 6.49 cd/m2 Orange GaP (QLMP-K477) 6.21 cd/m2 Red Spots (Water Temp, Oil, Gas) 2.43 cd/m2 HER (HLMP-1320) 4.86 cd/m2 Blue Spot (Water Temp.) 2.35 cd/m2 SiC Blue (HLMP-DB25) 3.73 cd/m2 Table 2. Telltales Color Red Incandescent 35 cd/m 2 AS AlGaAs (HLMP-K105)110 cd/m2 Amber 106 cd/m2 AlInGaP (HLMA-KL00) 240 cd/m2 Green LPE Green (HLMP-1540) 65 cd/m2 63 - 404 cd/m2 Blue 18 cd/m2 each gauge, the gauge applique no longer needs this "half-tone compensation" silkscreen layer. Thus, the use of LEDs in an instrument cluster saves about $5.00 in the cost of the applique set. The down-side of using "colored" LED light sources,

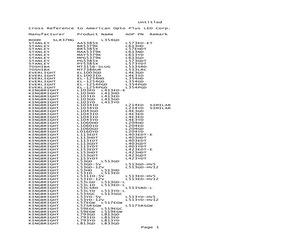

GILENT (HP) HSMH-C650 L150SRC AGILENT (HP) HSMH-T600 L955SRC AGILENT (HP) HSMS-C650 L150EC AGILENT (HP) HSMS-T600 L955EC AGILENT (HP) HSMY-C650 L150YC AGILENT (HP) HLMP-1520 L354GC AGILENT (HP) HLMP-1521 L354GT AGILENT (HP) HLMP-1523 L354GD-A AGILENT (HP) HLMP-1540 L354SGC AGILENT (HP) HLMP-1600 L354ED-HV5 AGILENT (HP) HLMP-1601 L354ED-HV12 AGILENT (HP) HLMP-1620 L354YD-HV5 AGILENT (HP) HLMP-1621 L354YD-HV12 AGILENT (HP) HLMP-1640 L354GD-HV5 AGILENT (HP) HLMP-1641 L354GD-HV12 AGILENT (HP) HLMP-1700 L354ED-L AGILENT (HP) HLMP-1719 L354YD-L AGILENT (HP) HLMP-3601 L513ED-HV12 AGILENT (HP) HLMP-3650 L513YD-HV5 AGILENT (HP) HLMP-3651 L513YD-HV12 AGILENT (HP) HLMP-3680 L513GD-HV5 AGILENT (HP) HLMP-3681 L513GD-HV12 AGILENT (HP) HLMP-3765 L513ID AGILENT (HP) HLMP-4000 AGILENT (HP) HLMP-4000 L519EGW AGILENT (HP) HLMP-4100 L563SRC AGILENT (HP) HLMP-4101 L563LRC AGILENT (HP) HLMP-4700 L513ED-L AGILENT (HP) HLMP-4719 L513YD-L AGILENT (HP) HLMP-4740 L513GD-L AGILENT (HP) HSMY-T600 L955YC AGILENT (HP) HDSP-E10

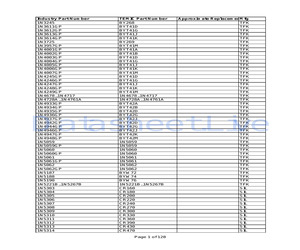

-0400 HLMP-0503 HLMP-1000 HLMP-1002 HLMP-1300 HLMP-1300 HLMP-1301 HLMP-1301 HLMP-1302 HLMP-1320 HLMP-1321 HLMP-1340 HLMP-1340 HLMP-1385 HLMP-1400 HLMP-1401 HLMP-1402 HLMP-1420 HLMP-1421 HLMP-1440 HLMP-1440 HLMP-1485 HLMP-1503 HLMP-1520 HLMP-1521 HLMP-1523 HLMP-1540 HLMP-1540 HLMP-1585 HLMP-1600 HLMP-1601 HLMP-1620 HLMP-1621 HLMP-1640 HLMP-1641 HLMP-1700 HLMP-1700 HLMP-1719 HLMP-1719 HLMP-1719 HLMP-1790 HLMP-3000 TEMIC Part Number DG201ADY DG201ADY DG201HSDY DG201HSDY DG508DY DG508DY DG509DY DG509DY TDSO 5150 TDSO 5160 TDSY 5150 TDSY 5160 TLSH 2100 TLSY 2100 TLSG 2100 TLUR 4400 TLUR 4401 TLHR 4400 TLHR 4400 TLHR 4401 TLHR 4401 TLHR 4405 TLHR 4900 TLHR 4201 TLHR 4900 TLHR 4900 TLHR 4405 TLHY 4400 TLHY 4401 TLHY 4405 TLHY 4900 TLHY 4201 TLHY 4900 TLHY 4900 TLHY 4405 TLHG 4400 TLHG 4900 TLHG 4200 TLHG 4401 TLHG 4900 TLHG 4900 TLHG 4405 TLHR 4450 TLHR 4400 TLRY 4450 TLRY 4400 TLRG 4450 TLRG 4400 TLLR 4400 TLLR 4401 TLLR 4401 TLLY 4401 TLLY 4401 TLLY 4401 TLUR 5401 Page 55 of 128 Approxima

ct Us | Home Quick Search About Agilent | Online Stores | Products & Services | Industries | International Home > Products & Services > Semiconductor Products Home > LED Design Center > Product Information and Literature Product Information and Literature HLMP-1540-IJ0FH Events T-1 (3mm) Ultra-Bright LED Lamp Guided Selection Library News Releases Order Information Global Account Sites Partner Portal Product Index LIFE CYCLE STATUS AC - Active This product is Market released and in full production FEATURES Hot Links Product Center Application Notes Improved Brightness Improved Color Performance High Performance Green in Popular T-1 Package New Sturdy Leads IC Compatible/Low Current Capability Reliable and Rugged Datasheets FAQs Product Notifications DESCRIPTION This clear, non-diffused lamp out-perform conventional LED lamps. By utilizing new higher intensity material, we achieve superior product performance. This HLMP-1540 is Gallium Arsenide Phosphide on Gallium Phosphide, yellow,

HLMP-1540, MV5460 PALE TINT HIGH EFFICIENCY RED MV5762X TINTED, HLMP-1340, MV5760 PALE TINT 325.818) pia -~ 250 (6.38) { .200 (5.08) | .040 {1.02} REF. 0.95 4 MIN. 1185 (4,70) TESTS 00 Ot
